https://gitee.com/liu-haijin/flow

项目地址：

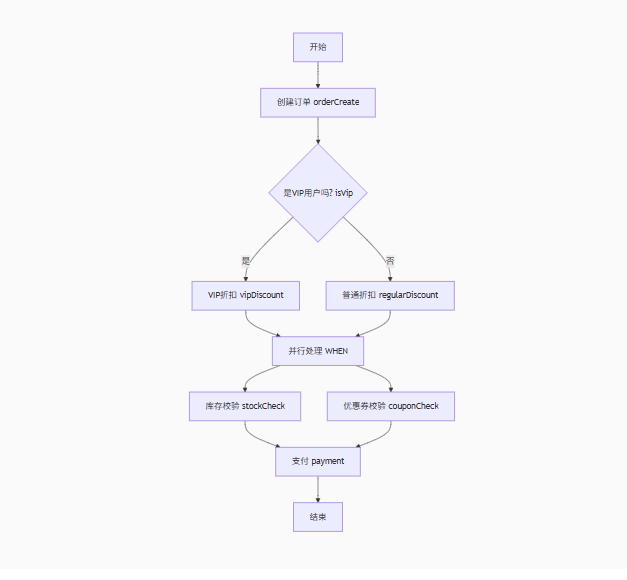

案例一：

el表达式：

<chain name="orderProcessChain">
  THEN(
    orderCreate,
    IF(isVip, vipDiscount, regularDiscount),
    WHEN(stockCheck, couponCheck),
    payment
  )
</chain>

test1解析的结果：

{
    "elExpression": "THEN(orderCreate, IF(isVip, vipDiscount, regularDiscount), WHEN(stockCheck, couponCheck), payment)",
    "success": true,
    "message": "Vue Flow流程图解析成功"
}

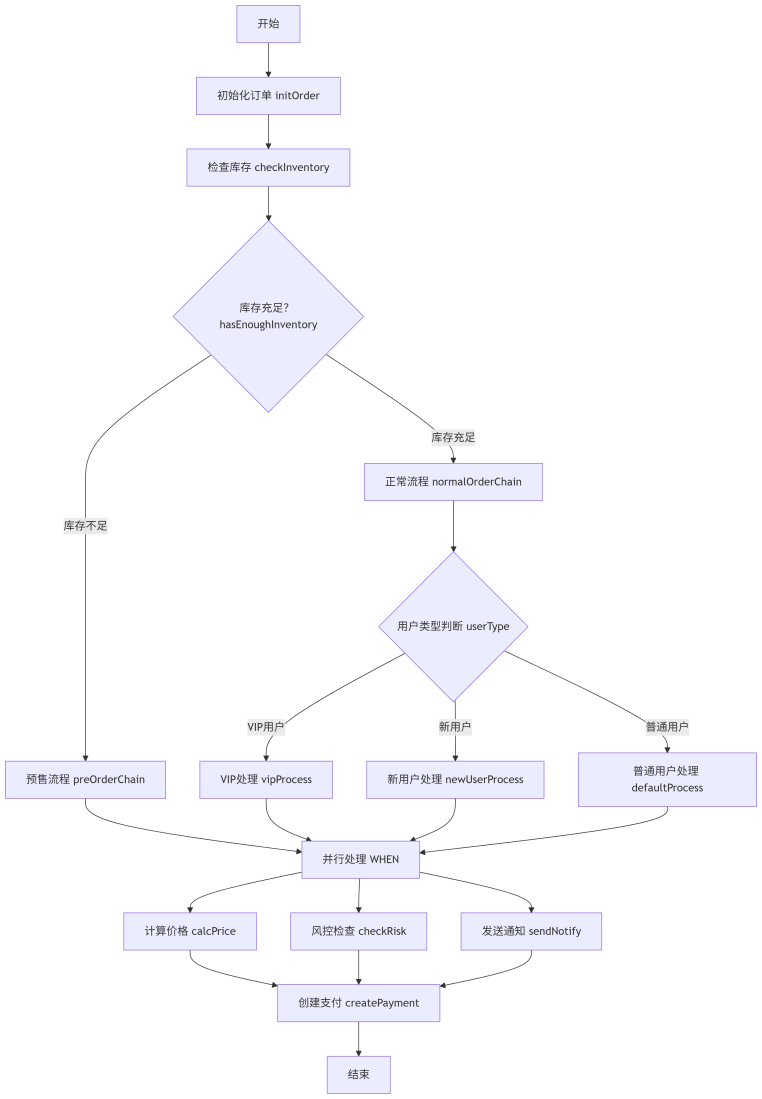

案例二：

el表达式：

<chain name="complexOrderChain">
  THEN(
    initOrder,
    checkInventory,
    IF(
      hasEnoughInventory,

      THEN(
        normalOrderChain,
        SWITCH(userType).TO(
          vipProcess,
          newUserProcess,
          defaultProcess
        )
      ),

      preOrderChain
    ),
    WHEN(
      calcPrice,
      checkRisk,
      sendNotify
    ),
    createPayment
  )
</chain>

test2解析的结果：

{
    "elExpression": "THEN(initOrder, checkInventory, IF(hasEnoughInventory, THEN(normalOrderChain, SWITCH(userType).TO(vipProcess, newUserProcess, defaultProcess)), preOrderChain), WHEN(calcPrice, checkRisk, sendNotify), createPayment)",
    "success": true,
    "message": "Vue Flow流程图解析成功"
}

end

LiteFlow官网： https://liteflow.cc/pages/71ff49/

VueFlow官网：https://vue-flow.nodejs.cn/guide/composables.html

el表达式解析：参考：ivy-el-parser: 基于LiteFlow规则引擎，把前端LogicFlow数据解析成EL表达式的工具。 支持代码中动态构建LogicFlow数据格式。

example：liteflow-editor-server: LiteFlow可视化编辑器后端项目

liteflow-editor-client: Liteflow可视化编辑器前端项目
