微服务公共模块

我爱海鲸 2025-02-09 19:30:49 sc alibaba

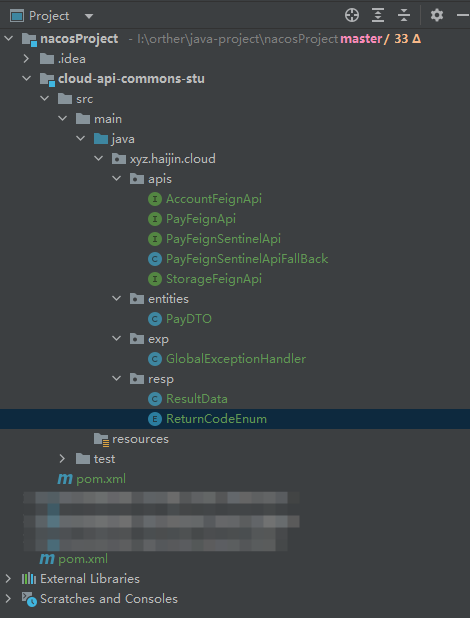

简介SpringCloud Alibaba、springboot3

1、总的pom文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>xyz.haijin</groupId>
    <artifactId>nacosProject</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>cloud-api-commons-stu</module>
    </modules>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <hutool.version>5.8.22</hutool.version>
        <lombok.version>1.18.26</lombok.version>
        <druid.version>1.1.20</druid.version>
        <mybatis.springboot.version>3.0.2</mybatis.springboot.version>
        <mysql.version>8.0.11</mysql.version>
        <swagger3.version>2.2.0</swagger3.version>
        <mapper.version>4.2.3</mapper.version>
        <fastjson2.version>2.0.40</fastjson2.version>
        <persistence-api.version>1.0.2</persistence-api.version>
        <spring.boot.test.version>3.1.5</spring.boot.test.version>
        <!--       <spring.boot.version>3.2.0</spring.boot.version>
               <spring.cloud.version>2023.0.0</spring.cloud.version>-->

        <!--仅为了整合openfeign + alibaba sentinel的案例，降低版本处理下-->
        <!--        <spring.boot.version>3.0.9</spring.boot.version>
                <spring.cloud.version>2022.0.2</spring.cloud.version>-->

        <!--仅为了整合openfeign + alibaba seata的案例，降低版本处理下-->
        <spring.boot.version>3.1.7</spring.boot.version>
        <spring.cloud.version>2022.0.4</spring.cloud.version>

        <spring.cloud.alibaba.version>2022.0.0.0-RC2</spring.cloud.alibaba.version>
        <micrometer-tracing.version>1.2.0</micrometer-tracing.version>
        <micrometer-observation.version>1.12.0</micrometer-observation.version>
        <feign-micrometer.version>12.5</feign-micrometer.version>
        <zipkin-reporter-brave.version>2.17.0</zipkin-reporter-brave.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!--springboot 3.2.0-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springcloud 2023.0.0-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springcloud alibaba 2022.0.0.0-RC2-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--SpringBoot集成mybatis-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.springboot.version}</version>
            </dependency>
            <!--Mysql数据库驱动8 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--SpringBoot集成druid连接池-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!--通用Mapper4之tk.mybatis-->
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper</artifactId>
                <version>${mapper.version}</version>
            </dependency>
            <!--persistence-->
            <dependency>
                <groupId>javax.persistence</groupId>
                <artifactId>persistence-api</artifactId>
                <version>${persistence-api.version}</version>
            </dependency>
            <!-- fastjson2 -->
            <dependency>
                <groupId>com.alibaba.fastjson2</groupId>
                <artifactId>fastjson2</artifactId>
                <version>${fastjson2.version}</version>
            </dependency>
            <!-- swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html -->
            <dependency>
                <groupId>org.springdoc</groupId>
                <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
                <version>${swagger3.version}</version>
            </dependency>
            <!--hutool-->
            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool.version}</version>
            </dependency>
            <!--lombok-->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <optional>true</optional>
            </dependency>
            <!-- spring-boot-starter-test -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <version>${spring.boot.test.version}</version>
                <scope>test</scope>
            </dependency>

            <!--micrometer-tracing-bom导入链路追踪版本中心  1-->
            <dependency>
                <groupId>io.micrometer</groupId>
                <artifactId>micrometer-tracing-bom</artifactId>
                <version>${micrometer-tracing.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--micrometer-tracing指标追踪  2-->
            <dependency>
                <groupId>io.micrometer</groupId>
                <artifactId>micrometer-tracing</artifactId>
                <version>${micrometer-tracing.version}</version>
            </dependency>
            <!--micrometer-tracing-bridge-brave适配zipkin的桥接包 3-->
            <dependency>
                <groupId>io.micrometer</groupId>
                <artifactId>micrometer-tracing-bridge-brave</artifactId>
                <version>${micrometer-tracing.version}</version>
            </dependency>
            <!--micrometer-observation 4-->
            <dependency>
                <groupId>io.micrometer</groupId>
                <artifactId>micrometer-observation</artifactId>
                <version>${micrometer-observation.version}</version>
            </dependency>
            <!--feign-micrometer 5-->
            <dependency>
                <groupId>io.github.openfeign</groupId>
                <artifactId>feign-micrometer</artifactId>
                <version>${feign-micrometer.version}</version>
            </dependency>
            <!--zipkin-reporter-brave 6-->
            <dependency>
                <groupId>io.zipkin.reporter2</groupId>
                <artifactId>zipkin-reporter-brave</artifactId>
                <version>${zipkin-reporter-brave.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

2、common的pom文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>nacosProject</artifactId>
        <groupId>xyz.haijin</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-api-commons-stu</artifactId>
    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!--openfeign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--alibaba-sentinel-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
        <!--openfeign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--SpringBoot通用依赖模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
    </dependencies>

</project>

3、AccountFeignApi：

package xyz.haijin.cloud.apis;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import xyz.haijin.cloud.resp.ResultData;

@FeignClient(value = "seata-account-service")
public interface AccountFeignApi {
    //扣减账户余额
    @PostMapping("/account/decrease")
    ResultData decrease(@RequestParam("userId") Long userId, @RequestParam("money") Long money);
}

4、PayFeignApi：

package xyz.haijin.cloud.apis;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import xyz.haijin.cloud.entities.PayDTO;
import xyz.haijin.cloud.resp.ResultData;


@FeignClient("cloud-gateway")
public interface PayFeignApi {
    /**
     * 新增一条支付相关流水记录
     * @param
     * @return
     */
    @PostMapping(value = "/pay/add")
    public ResultData addPay(@RequestBody PayDTO payDTO);

    /**
     * openfeign天然支持负载均衡演示
     * @return
     */
    @GetMapping("/pay/get/info")
    public ResultData mylb();

    /**
     * Resillisence4J CircuitBreaker 的案例
     * @param id
     * @return
     */
    @GetMapping(value = "/pay/circuit/{id}")
    public String myCircuit(@PathVariable("id") Integer id);

    /**
     * Resillience4J CircuitBreaker的案例演示
     * @param id
     * @return
     */
    @GetMapping(value = "/pay/bulkhead/{id}")
    public String myBulkhead(@PathVariable("id") Integer id);

    /**
     * Resilience4J Ratelimiter的案例演示
     * @param id
     * @return
     */
    @GetMapping(value = "/pay/ratelimit/{id}")
    public String myRatelimit(@PathVariable("id") Integer id);

    /**
     * Micrometer监控案例
     * @param id
     * @return
     */
    @GetMapping(value = "/pay/micrometer/{id}")
    public String myMicrometer(@PathVariable("id") Integer id);

    @GetMapping(value = "/pay/gateway/get/{id}")
    public ResultData getById(@PathVariable("id") Integer id);

    @GetMapping(value = "/pay/gateway/info")
    public ResultData<String> getGatewayInfo();
}

5、PayFeignSentinelApi：

package xyz.haijin.cloud.apis;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import xyz.haijin.cloud.resp.ResultData;

@FeignClient(value = "nacos-payment-provider",fallback = PayFeignSentinelApiFallBack.class)
public interface PayFeignSentinelApi
{
    @GetMapping("/pay/nacos/get/{orderNo}")
    public ResultData getPayByOrderNo(@PathVariable("orderNo") String orderNo);
}

6、PayFeignSentinelApiFallBack：

package xyz.haijin.cloud.apis;

import org.springframework.stereotype.Component;
import xyz.haijin.cloud.resp.ResultData;
import xyz.haijin.cloud.resp.ReturnCodeEnum;


@Component
public class PayFeignSentinelApiFallBack implements PayFeignSentinelApi{
    @Override
    public ResultData getPayByOrderNo(String orderNo) {
        return ResultData.fail(ReturnCodeEnum.RC500.getCode(),"对方服务宕机或不可用，FallBack服务降级o(╥﹏╥)o");
    }
}

7、StorageFeignApi：

package xyz.haijin.cloud.apis;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import xyz.haijin.cloud.resp.ResultData;

@FeignClient(value = "seata-storage-service")
public interface StorageFeignApi {
    /**
     * 扣减库存
     */
    @PostMapping(value = "/storage/decrease")
    ResultData decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}

8、PayDTO：

package xyz.haijin.cloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;
import java.math.BigDecimal;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class PayDTO implements Serializable
{
    private Integer id;
    //支付流水号
    private String payNo;
    //订单流水号
    private String orderNo;
    //用户账号ID
    private Integer userId;
    //交易金额
    private BigDecimal amount;
}

9、GlobalExceptionHandler：

package xyz.haijin.cloud.exp;

import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.annotation.RestControllerAdvice;
import xyz.haijin.cloud.resp.ResultData;
import xyz.haijin.cloud.resp.ReturnCodeEnum;

@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {
    @ExceptionHandler(RuntimeException.class)
    @ResponseStatus(HttpStatus.INTERNAL_SERVER_ERROR)
    public ResultData<String> exception(Exception e){
        log.info("全局异常: {}", e.getMessage(), e);
        return ResultData.fail(ReturnCodeEnum.RC500.getCode(), e.getMessage());
    }
}

10、ResultData：

package xyz.haijin.cloud.resp;

import lombok.Data;
import lombok.experimental.Accessors;

@Data
@Accessors(chain = true)
public class ResultData<T> {
    private String code;
    private String message;
    private T data;
    private long timestamp;

    public ResultData(){
        this.timestamp = System.currentTimeMillis();
    }

    public static <T> ResultData<T> success(T data){
        return new ResultData<T>()
                .setCode(ReturnCodeEnum.RC200.getCode())
                .setMessage(ReturnCodeEnum.RC200.getMessage())
                .setData(data);
    }

    public static <T> ResultData<T> fail(String code, String message){
        return new ResultData<T>()
                .setCode(code)
                .setMessage(message);
    }
}

11、ReturnCodeEnum：

package xyz.haijin.cloud.resp;

import lombok.Getter;

import java.util.Arrays;

@Getter
public enum ReturnCodeEnum {
    /**
     * 操作失败
     **/
    RC999("999", "操作XXX失败"),
    /**
     * 操作成功
     **/
    RC200("200", "success"),
    /**
     * 服务降级
     **/
    RC201("201", "服务开启降级保护,请稍后再试!"),
    /**
     * 热点参数限流
     **/
    RC202("202", "热点参数限流,请稍后再试!"),
    /**
     * 系统规则不满足
     **/
    RC203("203", "系统规则不满足要求,请稍后再试!"),
    /**
     * 授权规则不通过
     **/
    RC204("204", "授权规则不通过,请稍后再试!"),
    /**
     * access_denied
     **/
    RC403("403", "无访问权限,请联系管理员授予权限"),
    /**
     * access_denied
     **/
    RC401("401", "匿名用户访问无权限资源时的异常"),
    RC404("404", "404页面找不到的异常"),
    /**
     * 服务异常
     **/
    RC500("500", "系统异常，请稍后重试"),
    RC375("375", "数学运算异常，请稍后重试"),

    INVALID_TOKEN("2001", "访问令牌不合法"),
    ACCESS_DENIED("2003", "没有权限访问该资源"),
    CLIENT_AUTHENTICATION_FAILED("1001", "客户端认证失败"),
    USERNAME_OR_PASSWORD_ERROR("1002", "用户名或密码错误"),
    BUSINESS_ERROR("1004", "业务逻辑异常"),
    UNSUPPORTED_GRANT_TYPE("1003", "不支持的认证模式");

    private final String code;
    private final String message;

    ReturnCodeEnum(String code, String message) {
        this.code = code;
        this.message = message;
    }

    public static ReturnCodeEnum getReturnCodeEnumV1(String code) {
        for (ReturnCodeEnum elem : ReturnCodeEnum.values()) {
            if (code.equals(elem.getCode())) {
                return elem;
            }
        }

        return null;
    }


    public static ReturnCodeEnum getReturnCodeEnumV2(String code) {
        return Arrays.stream(ReturnCodeEnum.values())
                .filter(elem -> code.equals(elem.getCode()))
                .findFirst()
                .orElse(null);
    }

/*    public static void main(String[] args) {
        String testCode = "200";

        ReturnCodeEnum returnCodeEnumV1 = getReturnCodeEnumV1(testCode);
        System.out.println(returnCodeEnumV1.getCode());
        System.out.println(returnCodeEnumV1.getMessage());

        System.out.println();

        ReturnCodeEnum returnCodeEnumV2 = getReturnCodeEnumV2(testCode);
        System.out.println(returnCodeEnumV2.getCode());
        System.out.println(returnCodeEnumV2.getMessage());
    }*/
}

你好：我的2025

上一篇：HashMap 的基本原理

下一篇：普通的jar包导入到maven项目中

sc alibaba

最近更新

最近更新

最近更新

Copyright 2025 Inc. AllRights Reserved. Design by 我爱海鲸 湘ICP备19022671号-1
