简介HBase Coprocessor

一、HBase Coprocessor

HBase协处理器受BigTable协处理器的启发，为用户提供类库和运行时环境,使得代码能够在HBase RegionServer和Master上处理

系统协处理器and表协处理器

observer and Endpoint

系统协处理器:全局加载到RegionServer托管的所有表和Region上

表协处理器:用户可以指定一张表使用协处理器

观察者( Observer ) :类似于关系数据库的触发器

   1）RegionObserver:提供客户端的数据操纵事件钩子:Get、Put、Delete、Scan等

   2）MasterObserver:提供DDL类型的操作钩子。如创建、删除、修改数据表等
   3）WALObserver:提供WAL相关操作钩子

observer应用场景

   安全性:例如执行Get或Put操作前,通过preGet或prePut方法检查是否允许该操作

   引用完整性约束:HBase并不支持关系型数据库中的引用完整性约束概念，即通常所说的外键。我们可以使用协处理器增强这种约束

   二级索引:可以使用协处理器来维持一个二级索引

终端(Endpoint):动态的终端有点像存储过程

   Endpoint是动态RPC插件的接口，它的实现代码被安装在服务器端,从而能够通过HBase RPC唤醒

   调用接口，它们的实现代码会被目标RegionServer远程执行

   典型的案例:一个大Table有几百个Region，需要计算某列的平均值或者总和

二、协处理器实战

实现一个RegionObserver类型的协处理器

1、首先编写pom文件，如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>hbase-example</artifactId>
    <groupId>com.imooc.bigdata</groupId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <artifactId>hbase-observer-test</artifactId>
  <dependencies>
    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-common</artifactId>
      <version>1.2.4</version>
    </dependency>
    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-server</artifactId>
      <version>1.2.4</version>
    </dependency>
  </dependencies>

</project>

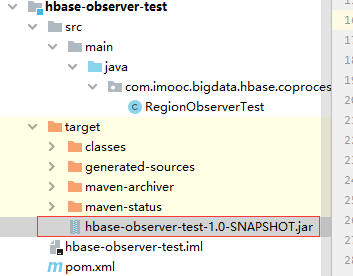

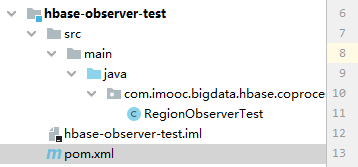

2、完整的项目结构：

RegionObserverTest：
package com.imooc.bigdata.hbase.coprocessor.observer;

import java.awt.image.ImagingOpException;
import java.io.IOException;
import java.util.Arrays;
import java.util.List;

import org.apache.hadoop.hbase.Cell;
import org.apache.hadoop.hbase.CellUtil;
import org.apache.hadoop.hbase.CoprocessorEnvironment;
import org.apache.hadoop.hbase.client.Delete;
import org.apache.hadoop.hbase.client.Durability;
import org.apache.hadoop.hbase.client.Get;
import org.apache.hadoop.hbase.client.Put;
import org.apache.hadoop.hbase.client.Result;
import org.apache.hadoop.hbase.coprocessor.BaseRegionObserver;
import org.apache.hadoop.hbase.coprocessor.ObserverContext;
import org.apache.hadoop.hbase.coprocessor.RegionCoprocessorEnvironment;
import org.apache.hadoop.hbase.regionserver.wal.WALEdit;
import org.apache.hadoop.hbase.util.Bytes;

public class RegionObserverTest extends BaseRegionObserver {

  private byte[] columnFamily = Bytes.toBytes("cf");
  private byte[] countCol = Bytes.toBytes("countCol");
  private byte[] unDeleteCol = Bytes.toBytes("unDeleteCol");
  private RegionCoprocessorEnvironment environment;

  //regionserver 打开region前执行
  @Override
  public void start(CoprocessorEnvironment e) throws IOException {
    environment = (RegionCoprocessorEnvironment) e;
  }

  //RegionServer关闭region前调用
  @Override
  public void stop(CoprocessorEnvironment e) throws IOException {

  }

  /**

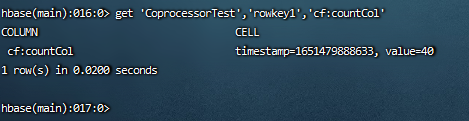

   * 1. cf:countCol 进行累加操作。 每次插入的时候都要与之前的值进行相加
   */

  @Override
  public void prePut(ObserverContext<RegionCoprocessorEnvironment> e, Put put, WALEdit edit,
      Durability durability) throws IOException {
    if (put.has(columnFamily, countCol)) {
      //获取old countcol value
      Result rs = e.getEnvironment().getRegion().get(new Get(put.getRow()));
      int oldNum = 0;
      for (Cell cell : rs.rawCells()) {
        if (CellUtil.matchingColumn(cell, columnFamily, countCol)) {
          oldNum = Integer.valueOf(Bytes.toString(CellUtil.cloneValue(cell)));
        }
      }

      //获取new countcol value
      List<Cell> cells = put.get(columnFamily, countCol);
      int newNum = 0;
      for (Cell cell : cells) {
        if (CellUtil.matchingColumn(cell, columnFamily, countCol)) {
          newNum = Integer.valueOf(Bytes.toString(CellUtil.cloneValue(cell)));
        }
      }

      //sum AND update Put实例
      put.addColumn(columnFamily, countCol, Bytes.toBytes(String.valueOf(oldNum + newNum)));
    }
  }

  /**
   * 2. 不能直接删除unDeleteCol    删除countCol的时候将unDeleteCol一同删除
   */
  @Override
  public void preDelete(ObserverContext<RegionCoprocessorEnvironment> e, Delete delete,
      WALEdit edit,
      Durability durability) throws IOException {
    //判断是否操作cf列族
    List<Cell> cells = delete.getFamilyCellMap().get(columnFamily);
    if (cells == null || cells.size() == 0) {
      return;
    }

    boolean deleteFlag = false;
    for (Cell cell : cells) {
      byte[] qualifier = CellUtil.cloneQualifier(cell);

      if (Arrays.equals(qualifier, unDeleteCol)) {
        throw new IOException("can not delete unDel column");
      }

      if (Arrays.equals(qualifier, countCol)) {
        deleteFlag = true;
      }
    }

    if (deleteFlag) {
      delete.addColumn(columnFamily, unDeleteCol);
    }
  }

}

实现一个Endpoint类型的协处理器

1、首先编写pom文件，如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>hbase-example</artifactId>
    <groupId>com.imooc.bigdata</groupId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <artifactId>hbase-endpoint-test</artifactId>
  <dependencies>
    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-server</artifactId>
      <version>1.2.4</version>
    </dependency>
    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-common</artifactId>
      <version>1.2.4</version>
    </dependency>
    <dependency>
      <groupId>com.google.protobuf</groupId>
      <artifactId>protobuf-java</artifactId>
      <version>2.5.0</version>
    </dependency>
  </dependencies>

</project>

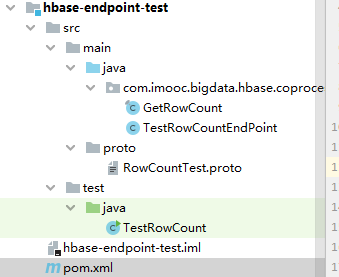

2、项目结构：

3、GetRowCount：

// Generated by the protocol buffer compiler.  DO NOT EDIT!
// source: RowCountTest.proto

package com.imooc.bigdata.hbase.coprocessor.endpoint;

public final class GetRowCount {
  private GetRowCount() {}
  public static void registerAllExtensions(
      com.google.protobuf.ExtensionRegistry registry) {
  }
  public interface getRowCountRequestOrBuilder
      extends com.google.protobuf.MessageOrBuilder {
  }
  /**
   * Protobuf type {@code getRowCountRequest}
   */
  public static final class getRowCountRequest extends
      com.google.protobuf.GeneratedMessage
      implements getRowCountRequestOrBuilder {
    // Use getRowCountRequest.newBuilder() to construct.
    private getRowCountRequest(com.google.protobuf.GeneratedMessage.Builder<?> builder) {
      super(builder);
      this.unknownFields = builder.getUnknownFields();
    }
    private getRowCountRequest(boolean noInit) { this.unknownFields = com.google.protobuf.UnknownFieldSet.getDefaultInstance(); }

    private static final getRowCountRequest defaultInstance;
    public static getRowCountRequest getDefaultInstance() {
      return defaultInstance;
    }

    public getRowCountRequest getDefaultInstanceForType() {
      return defaultInstance;
    }

    private final com.google.protobuf.UnknownFieldSet unknownFields;
    @java.lang.Override
    public final com.google.protobuf.UnknownFieldSet
        getUnknownFields() {
      return this.unknownFields;
    }
    private getRowCountRequest(
        com.google.protobuf.CodedInputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      initFields();
      com.google.protobuf.UnknownFieldSet.Builder unknownFields =
          com.google.protobuf.UnknownFieldSet.newBuilder();
      try {
        boolean done = false;
        while (!done) {
          int tag = input.readTag();
          switch (tag) {
            case 0:
              done = true;
              break;
            default: {
              if (!parseUnknownField(input, unknownFields,
                                     extensionRegistry, tag)) {
                done = true;
              }
              break;
            }
          }
        }
      } catch (com.google.protobuf.InvalidProtocolBufferException e) {
        throw e.setUnfinishedMessage(this);
      } catch (java.io.IOException e) {
        throw new com.google.protobuf.InvalidProtocolBufferException(
            e.getMessage()).setUnfinishedMessage(this);
      } finally {
        this.unknownFields = unknownFields.build();
        makeExtensionsImmutable();
      }
    }
    public static final com.google.protobuf.Descriptors.Descriptor
        getDescriptor() {
      return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountRequest_descriptor;
    }

    protected com.google.protobuf.GeneratedMessage.FieldAccessorTable
        internalGetFieldAccessorTable() {
      return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountRequest_fieldAccessorTable
          .ensureFieldAccessorsInitialized(
              com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.class, com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.Builder.class);
    }

    public static com.google.protobuf.Parser<getRowCountRequest> PARSER =
        new com.google.protobuf.AbstractParser<getRowCountRequest>() {
      public getRowCountRequest parsePartialFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws com.google.protobuf.InvalidProtocolBufferException {
        return new getRowCountRequest(input, extensionRegistry);
      }
    };

    @java.lang.Override
    public com.google.protobuf.Parser<getRowCountRequest> getParserForType() {
      return PARSER;
    }

    private void initFields() {
    }
    private byte memoizedIsInitialized = -1;
    public final boolean isInitialized() {
      byte isInitialized = memoizedIsInitialized;
      if (isInitialized != -1) return isInitialized == 1;

      memoizedIsInitialized = 1;
      return true;
    }

    public void writeTo(com.google.protobuf.CodedOutputStream output)
                        throws java.io.IOException {
      getSerializedSize();
      getUnknownFields().writeTo(output);
    }

    private int memoizedSerializedSize = -1;
    public int getSerializedSize() {
      int size = memoizedSerializedSize;
      if (size != -1) return size;

      size = 0;
      size += getUnknownFields().getSerializedSize();
      memoizedSerializedSize = size;
      return size;
    }

    private static final long serialVersionUID = 0L;
    @java.lang.Override
    protected java.lang.Object writeReplace()
        throws java.io.ObjectStreamException {
      return super.writeReplace();
    }

    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        com.google.protobuf.ByteString data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        com.google.protobuf.ByteString data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(byte[] data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        byte[] data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(java.io.InputStream input)
        throws java.io.IOException {
      return PARSER.parseFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseFrom(input, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseDelimitedFrom(java.io.InputStream input)
        throws java.io.IOException {
      return PARSER.parseDelimitedFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseDelimitedFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseDelimitedFrom(input, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        com.google.protobuf.CodedInputStream input)
        throws java.io.IOException {
      return PARSER.parseFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parseFrom(
        com.google.protobuf.CodedInputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseFrom(input, extensionRegistry);
    }

    public static Builder newBuilder() { return Builder.create(); }
    public Builder newBuilderForType() { return newBuilder(); }
    public static Builder newBuilder(com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest prototype) {
      return newBuilder().mergeFrom(prototype);
    }
    public Builder toBuilder() { return newBuilder(this); }

    @java.lang.Override
    protected Builder newBuilderForType(
        com.google.protobuf.GeneratedMessage.BuilderParent parent) {
      Builder builder = new Builder(parent);
      return builder;
    }
    /**
     * Protobuf type {@code getRowCountRequest}
     */
    public static final class Builder extends
        com.google.protobuf.GeneratedMessage.Builder<Builder>
       implements com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequestOrBuilder {
      public static final com.google.protobuf.Descriptors.Descriptor
          getDescriptor() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountRequest_descriptor;
      }

      protected com.google.protobuf.GeneratedMessage.FieldAccessorTable
          internalGetFieldAccessorTable() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountRequest_fieldAccessorTable
            .ensureFieldAccessorsInitialized(
                com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.class, com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.Builder.class);
      }

      // Construct using com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.newBuilder()
      private Builder() {
        maybeForceBuilderInitialization();
      }

      private Builder(
          com.google.protobuf.GeneratedMessage.BuilderParent parent) {
        super(parent);
        maybeForceBuilderInitialization();
      }
      private void maybeForceBuilderInitialization() {
        if (com.google.protobuf.GeneratedMessage.alwaysUseFieldBuilders) {
        }
      }
      private static Builder create() {
        return new Builder();
      }

      public Builder clear() {
        super.clear();
        return this;
      }

      public Builder clone() {
        return create().mergeFrom(buildPartial());
      }

      public com.google.protobuf.Descriptors.Descriptor
          getDescriptorForType() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountRequest_descriptor;
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest getDefaultInstanceForType() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.getDefaultInstance();
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest build() {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest result = buildPartial();
        if (!result.isInitialized()) {
          throw newUninitializedMessageException(result);
        }
        return result;
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest buildPartial() {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest result = new com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest(this);
        onBuilt();
        return result;
      }

      public Builder mergeFrom(com.google.protobuf.Message other) {
        if (other instanceof com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest) {
          return mergeFrom((com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest)other);
        } else {
          super.mergeFrom(other);
          return this;
        }
      }

      public Builder mergeFrom(com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest other) {
        if (other == com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.getDefaultInstance()) return this;
        this.mergeUnknownFields(other.getUnknownFields());
        return this;
      }

      public final boolean isInitialized() {
        return true;
      }

      public Builder mergeFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws java.io.IOException {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest parsedMessage = null;
        try {
          parsedMessage = PARSER.parsePartialFrom(input, extensionRegistry);
        } catch (com.google.protobuf.InvalidProtocolBufferException e) {
          parsedMessage = (com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest) e.getUnfinishedMessage();
          throw e;
        } finally {
          if (parsedMessage != null) {
            mergeFrom(parsedMessage);
          }
        }
        return this;
      }

      // @@protoc_insertion_point(builder_scope:getRowCountRequest)
    }

    static {
      defaultInstance = new getRowCountRequest(true);
      defaultInstance.initFields();
    }

    // @@protoc_insertion_point(class_scope:getRowCountRequest)
  }

  public interface getRowCountResponseOrBuilder
      extends com.google.protobuf.MessageOrBuilder {

    // optional int64 rowCount = 1;
    /**
     * <code>optional int64 rowCount = 1;</code>
     */
    boolean hasRowCount();
    /**
     * <code>optional int64 rowCount = 1;</code>
     */
    long getRowCount();
  }
  /**
   * Protobuf type {@code getRowCountResponse}
   */
  public static final class getRowCountResponse extends
      com.google.protobuf.GeneratedMessage
      implements getRowCountResponseOrBuilder {
    // Use getRowCountResponse.newBuilder() to construct.
    private getRowCountResponse(com.google.protobuf.GeneratedMessage.Builder<?> builder) {
      super(builder);
      this.unknownFields = builder.getUnknownFields();
    }
    private getRowCountResponse(boolean noInit) { this.unknownFields = com.google.protobuf.UnknownFieldSet.getDefaultInstance(); }

    private static final getRowCountResponse defaultInstance;
    public static getRowCountResponse getDefaultInstance() {
      return defaultInstance;
    }

    public getRowCountResponse getDefaultInstanceForType() {
      return defaultInstance;
    }

    private final com.google.protobuf.UnknownFieldSet unknownFields;
    @java.lang.Override
    public final com.google.protobuf.UnknownFieldSet
        getUnknownFields() {
      return this.unknownFields;
    }
    private getRowCountResponse(
        com.google.protobuf.CodedInputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      initFields();
      int mutable_bitField0_ = 0;
      com.google.protobuf.UnknownFieldSet.Builder unknownFields =
          com.google.protobuf.UnknownFieldSet.newBuilder();
      try {
        boolean done = false;
        while (!done) {
          int tag = input.readTag();
          switch (tag) {
            case 0:
              done = true;
              break;
            default: {
              if (!parseUnknownField(input, unknownFields,
                                     extensionRegistry, tag)) {
                done = true;
              }
              break;
            }
            case 8: {
              bitField0_ |= 0x00000001;
              rowCount_ = input.readInt64();
              break;
            }
          }
        }
      } catch (com.google.protobuf.InvalidProtocolBufferException e) {
        throw e.setUnfinishedMessage(this);
      } catch (java.io.IOException e) {
        throw new com.google.protobuf.InvalidProtocolBufferException(
            e.getMessage()).setUnfinishedMessage(this);
      } finally {
        this.unknownFields = unknownFields.build();
        makeExtensionsImmutable();
      }
    }
    public static final com.google.protobuf.Descriptors.Descriptor
        getDescriptor() {
      return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountResponse_descriptor;
    }

    protected com.google.protobuf.GeneratedMessage.FieldAccessorTable
        internalGetFieldAccessorTable() {
      return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountResponse_fieldAccessorTable
          .ensureFieldAccessorsInitialized(
              com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.class, com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.Builder.class);
    }

    public static com.google.protobuf.Parser<getRowCountResponse> PARSER =
        new com.google.protobuf.AbstractParser<getRowCountResponse>() {
      public getRowCountResponse parsePartialFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws com.google.protobuf.InvalidProtocolBufferException {
        return new getRowCountResponse(input, extensionRegistry);
      }
    };

    @java.lang.Override
    public com.google.protobuf.Parser<getRowCountResponse> getParserForType() {
      return PARSER;
    }

    private int bitField0_;
    // optional int64 rowCount = 1;
    public static final int ROWCOUNT_FIELD_NUMBER = 1;
    private long rowCount_;
    /**
     * <code>optional int64 rowCount = 1;</code>
     */
    public boolean hasRowCount() {
      return ((bitField0_ & 0x00000001) == 0x00000001);
    }
    /**
     * <code>optional int64 rowCount = 1;</code>
     */
    public long getRowCount() {
      return rowCount_;
    }

    private void initFields() {
      rowCount_ = 0L;
    }
    private byte memoizedIsInitialized = -1;
    public final boolean isInitialized() {
      byte isInitialized = memoizedIsInitialized;
      if (isInitialized != -1) return isInitialized == 1;

      memoizedIsInitialized = 1;
      return true;
    }

    public void writeTo(com.google.protobuf.CodedOutputStream output)
                        throws java.io.IOException {
      getSerializedSize();
      if (((bitField0_ & 0x00000001) == 0x00000001)) {
        output.writeInt64(1, rowCount_);
      }
      getUnknownFields().writeTo(output);
    }

    private int memoizedSerializedSize = -1;
    public int getSerializedSize() {
      int size = memoizedSerializedSize;
      if (size != -1) return size;

      size = 0;
      if (((bitField0_ & 0x00000001) == 0x00000001)) {
        size += com.google.protobuf.CodedOutputStream
          .computeInt64Size(1, rowCount_);
      }
      size += getUnknownFields().getSerializedSize();
      memoizedSerializedSize = size;
      return size;
    }

    private static final long serialVersionUID = 0L;
    @java.lang.Override
    protected java.lang.Object writeReplace()
        throws java.io.ObjectStreamException {
      return super.writeReplace();
    }

    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        com.google.protobuf.ByteString data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        com.google.protobuf.ByteString data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(byte[] data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        byte[] data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(java.io.InputStream input)
        throws java.io.IOException {
      return PARSER.parseFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseFrom(input, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseDelimitedFrom(java.io.InputStream input)
        throws java.io.IOException {
      return PARSER.parseDelimitedFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseDelimitedFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseDelimitedFrom(input, extensionRegistry);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        com.google.protobuf.CodedInputStream input)
        throws java.io.IOException {
      return PARSER.parseFrom(input);
    }
    public static com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parseFrom(
        com.google.protobuf.CodedInputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return PARSER.parseFrom(input, extensionRegistry);
    }

    public static Builder newBuilder() { return Builder.create(); }
    public Builder newBuilderForType() { return newBuilder(); }
    public static Builder newBuilder(com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse prototype) {
      return newBuilder().mergeFrom(prototype);
    }
    public Builder toBuilder() { return newBuilder(this); }

    @java.lang.Override
    protected Builder newBuilderForType(
        com.google.protobuf.GeneratedMessage.BuilderParent parent) {
      Builder builder = new Builder(parent);
      return builder;
    }
    /**
     * Protobuf type {@code getRowCountResponse}
     */
    public static final class Builder extends
        com.google.protobuf.GeneratedMessage.Builder<Builder>
       implements com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponseOrBuilder {
      public static final com.google.protobuf.Descriptors.Descriptor
          getDescriptor() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountResponse_descriptor;
      }

      protected com.google.protobuf.GeneratedMessage.FieldAccessorTable
          internalGetFieldAccessorTable() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountResponse_fieldAccessorTable
            .ensureFieldAccessorsInitialized(
                com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.class, com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.Builder.class);
      }

      // Construct using com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.newBuilder()
      private Builder() {
        maybeForceBuilderInitialization();
      }

      private Builder(
          com.google.protobuf.GeneratedMessage.BuilderParent parent) {
        super(parent);
        maybeForceBuilderInitialization();
      }
      private void maybeForceBuilderInitialization() {
        if (com.google.protobuf.GeneratedMessage.alwaysUseFieldBuilders) {
        }
      }
      private static Builder create() {
        return new Builder();
      }

      public Builder clear() {
        super.clear();
        rowCount_ = 0L;
        bitField0_ = (bitField0_ & ~0x00000001);
        return this;
      }

      public Builder clone() {
        return create().mergeFrom(buildPartial());
      }

      public com.google.protobuf.Descriptors.Descriptor
          getDescriptorForType() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.internal_static_getRowCountResponse_descriptor;
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse getDefaultInstanceForType() {
        return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance();
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse build() {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse result = buildPartial();
        if (!result.isInitialized()) {
          throw newUninitializedMessageException(result);
        }
        return result;
      }

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse buildPartial() {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse result = new com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse(this);
        int from_bitField0_ = bitField0_;
        int to_bitField0_ = 0;
        if (((from_bitField0_ & 0x00000001) == 0x00000001)) {
          to_bitField0_ |= 0x00000001;
        }
        result.rowCount_ = rowCount_;
        result.bitField0_ = to_bitField0_;
        onBuilt();
        return result;
      }

      public Builder mergeFrom(com.google.protobuf.Message other) {
        if (other instanceof com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse) {
          return mergeFrom((com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse)other);
        } else {
          super.mergeFrom(other);
          return this;
        }
      }

      public Builder mergeFrom(com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse other) {
        if (other == com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance()) return this;
        if (other.hasRowCount()) {
          setRowCount(other.getRowCount());
        }
        this.mergeUnknownFields(other.getUnknownFields());
        return this;
      }

      public final boolean isInitialized() {
        return true;
      }

      public Builder mergeFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws java.io.IOException {
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse parsedMessage = null;
        try {
          parsedMessage = PARSER.parsePartialFrom(input, extensionRegistry);
        } catch (com.google.protobuf.InvalidProtocolBufferException e) {
          parsedMessage = (com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse) e.getUnfinishedMessage();
          throw e;
        } finally {
          if (parsedMessage != null) {
            mergeFrom(parsedMessage);
          }
        }
        return this;
      }
      private int bitField0_;

      // optional int64 rowCount = 1;
      private long rowCount_ ;
      /**
       * <code>optional int64 rowCount = 1;</code>
       */
      public boolean hasRowCount() {
        return ((bitField0_ & 0x00000001) == 0x00000001);
      }
      /**
       * <code>optional int64 rowCount = 1;</code>
       */
      public long getRowCount() {
        return rowCount_;
      }
      /**
       * <code>optional int64 rowCount = 1;</code>
       */
      public Builder setRowCount(long value) {
        bitField0_ |= 0x00000001;
        rowCount_ = value;
        onChanged();
        return this;
      }
      /**
       * <code>optional int64 rowCount = 1;</code>
       */
      public Builder clearRowCount() {
        bitField0_ = (bitField0_ & ~0x00000001);
        rowCount_ = 0L;
        onChanged();
        return this;
      }

      // @@protoc_insertion_point(builder_scope:getRowCountResponse)
    }

    static {
      defaultInstance = new getRowCountResponse(true);
      defaultInstance.initFields();
    }

    // @@protoc_insertion_point(class_scope:getRowCountResponse)
  }

  /**
   * Protobuf service {@code hbaseEndPointTestService}
   */
  public static abstract class hbaseEndPointTestService
      implements com.google.protobuf.Service {
    protected hbaseEndPointTestService() {}

    public interface Interface {
      /**
       * <code>rpc getRowCount(.getRowCountRequest) returns (.getRowCountResponse);</code>
       */
      public abstract void getRowCount(
          com.google.protobuf.RpcController controller,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request,
          com.google.protobuf.RpcCallback<com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse> done);

    }

    public static com.google.protobuf.Service newReflectiveService(
        final Interface impl) {
      return new hbaseEndPointTestService() {
        @java.lang.Override
        public  void getRowCount(
            com.google.protobuf.RpcController controller,
            com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request,
            com.google.protobuf.RpcCallback<com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse> done) {
          impl.getRowCount(controller, request, done);
        }

      };
    }

    public static com.google.protobuf.BlockingService
        newReflectiveBlockingService(final BlockingInterface impl) {
      return new com.google.protobuf.BlockingService() {
        public final com.google.protobuf.Descriptors.ServiceDescriptor
            getDescriptorForType() {
          return getDescriptor();
        }

        public final com.google.protobuf.Message callBlockingMethod(
            com.google.protobuf.Descriptors.MethodDescriptor method,
            com.google.protobuf.RpcController controller,
            com.google.protobuf.Message request)
            throws com.google.protobuf.ServiceException {
          if (method.getService() != getDescriptor()) {
            throw new java.lang.IllegalArgumentException(
              "Service.callBlockingMethod() given method descriptor for " +
              "wrong service type.");
          }
          switch(method.getIndex()) {
            case 0:
              return impl.getRowCount(controller, (com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest)request);
            default:
              throw new java.lang.AssertionError("Can't get here.");
          }
        }

        public final com.google.protobuf.Message
            getRequestPrototype(
            com.google.protobuf.Descriptors.MethodDescriptor method) {
          if (method.getService() != getDescriptor()) {
            throw new java.lang.IllegalArgumentException(
              "Service.getRequestPrototype() given method " +
              "descriptor for wrong service type.");
          }
          switch(method.getIndex()) {
            case 0:
              return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.getDefaultInstance();
            default:
              throw new java.lang.AssertionError("Can't get here.");
          }
        }

        public final com.google.protobuf.Message
            getResponsePrototype(
            com.google.protobuf.Descriptors.MethodDescriptor method) {
          if (method.getService() != getDescriptor()) {
            throw new java.lang.IllegalArgumentException(
              "Service.getResponsePrototype() given method " +
              "descriptor for wrong service type.");
          }
          switch(method.getIndex()) {
            case 0:
              return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance();
            default:
              throw new java.lang.AssertionError("Can't get here.");
          }
        }

      };
    }

    /**
     * <code>rpc getRowCount(.getRowCountRequest) returns (.getRowCountResponse);</code>
     */
    public abstract void getRowCount(
        com.google.protobuf.RpcController controller,
        com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request,
        com.google.protobuf.RpcCallback<com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse> done);

    public static final
        com.google.protobuf.Descriptors.ServiceDescriptor
        getDescriptor() {
      return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getDescriptor().getServices().get(0);
    }
    public final com.google.protobuf.Descriptors.ServiceDescriptor
        getDescriptorForType() {
      return getDescriptor();
    }

    public final void callMethod(
        com.google.protobuf.Descriptors.MethodDescriptor method,
        com.google.protobuf.RpcController controller,
        com.google.protobuf.Message request,
        com.google.protobuf.RpcCallback<
          com.google.protobuf.Message> done) {
      if (method.getService() != getDescriptor()) {
        throw new java.lang.IllegalArgumentException(
          "Service.callMethod() given method descriptor for wrong " +
          "service type.");
      }
      switch(method.getIndex()) {
        case 0:
          this.getRowCount(controller, (com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest)request,
            com.google.protobuf.RpcUtil.<com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse>specializeCallback(
              done));
          return;
        default:
          throw new java.lang.AssertionError("Can't get here.");
      }
    }

    public final com.google.protobuf.Message
        getRequestPrototype(
        com.google.protobuf.Descriptors.MethodDescriptor method) {
      if (method.getService() != getDescriptor()) {
        throw new java.lang.IllegalArgumentException(
          "Service.getRequestPrototype() given method " +
          "descriptor for wrong service type.");
      }
      switch(method.getIndex()) {
        case 0:
          return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest.getDefaultInstance();
        default:
          throw new java.lang.AssertionError("Can't get here.");
      }
    }

    public final com.google.protobuf.Message
        getResponsePrototype(
        com.google.protobuf.Descriptors.MethodDescriptor method) {
      if (method.getService() != getDescriptor()) {
        throw new java.lang.IllegalArgumentException(
          "Service.getResponsePrototype() given method " +
          "descriptor for wrong service type.");
      }
      switch(method.getIndex()) {
        case 0:
          return com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance();
        default:
          throw new java.lang.AssertionError("Can't get here.");
      }
    }

    public static Stub newStub(
        com.google.protobuf.RpcChannel channel) {
      return new Stub(channel);
    }

    public static final class Stub extends com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.hbaseEndPointTestService implements Interface {
      private Stub(com.google.protobuf.RpcChannel channel) {
        this.channel = channel;
      }

      private final com.google.protobuf.RpcChannel channel;

      public com.google.protobuf.RpcChannel getChannel() {
        return channel;
      }

      public  void getRowCount(
          com.google.protobuf.RpcController controller,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request,
          com.google.protobuf.RpcCallback<com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse> done) {
        channel.callMethod(
          getDescriptor().getMethods().get(0),
          controller,
          request,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance(),
          com.google.protobuf.RpcUtil.generalizeCallback(
            done,
            com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.class,
            com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance()));
      }
    }

    public static BlockingInterface newBlockingStub(
        com.google.protobuf.BlockingRpcChannel channel) {
      return new BlockingStub(channel);
    }

    public interface BlockingInterface {
      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse getRowCount(
          com.google.protobuf.RpcController controller,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request)
          throws com.google.protobuf.ServiceException;
    }

    private static final class BlockingStub implements BlockingInterface {
      private BlockingStub(com.google.protobuf.BlockingRpcChannel channel) {
        this.channel = channel;
      }

      private final com.google.protobuf.BlockingRpcChannel channel;

      public com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse getRowCount(
          com.google.protobuf.RpcController controller,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest request)
          throws com.google.protobuf.ServiceException {
        return (com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse) channel.callBlockingMethod(
          getDescriptor().getMethods().get(0),
          controller,
          request,
          com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse.getDefaultInstance());
      }

    }

    // @@protoc_insertion_point(class_scope:hbaseEndPointTestService)
  }

  private static com.google.protobuf.Descriptors.Descriptor
    internal_static_getRowCountRequest_descriptor;
  private static
    com.google.protobuf.GeneratedMessage.FieldAccessorTable
      internal_static_getRowCountRequest_fieldAccessorTable;
  private static com.google.protobuf.Descriptors.Descriptor
    internal_static_getRowCountResponse_descriptor;
  private static
    com.google.protobuf.GeneratedMessage.FieldAccessorTable
      internal_static_getRowCountResponse_fieldAccessorTable;

  public static com.google.protobuf.Descriptors.FileDescriptor
      getDescriptor() {
    return descriptor;
  }
  private static com.google.protobuf.Descriptors.FileDescriptor
      descriptor;
  static {
    java.lang.String[] descriptorData = {
      "\n\022RowCountTest.proto\"\024\n\022getRowCountReque" +
      "st\"\'\n\023getRowCountResponse\022\020\n\010rowCount\030\001 " +
      "\001(\0032T\n\030hbaseEndPointTestService\0228\n\013getRo" +
      "wCount\022\023.getRowCountRequest\032\024.getRowCoun" +
      "tResponseB@\n,com.imooc.bigdata.hbase.cop" +
      "rocessor.endpointB\013GetRowCountH\001\210\001\001"
    };
    com.google.protobuf.Descriptors.FileDescriptor.InternalDescriptorAssigner assigner =
      new com.google.protobuf.Descriptors.FileDescriptor.InternalDescriptorAssigner() {
        public com.google.protobuf.ExtensionRegistry assignDescriptors(
            com.google.protobuf.Descriptors.FileDescriptor root) {
          descriptor = root;
          internal_static_getRowCountRequest_descriptor =
            getDescriptor().getMessageTypes().get(0);
          internal_static_getRowCountRequest_fieldAccessorTable = new
            com.google.protobuf.GeneratedMessage.FieldAccessorTable(
              internal_static_getRowCountRequest_descriptor,
              new java.lang.String[] { });
          internal_static_getRowCountResponse_descriptor =
            getDescriptor().getMessageTypes().get(1);
          internal_static_getRowCountResponse_fieldAccessorTable = new
            com.google.protobuf.GeneratedMessage.FieldAccessorTable(
              internal_static_getRowCountResponse_descriptor,
              new java.lang.String[] { "RowCount", });
          return null;
        }
      };
    com.google.protobuf.Descriptors.FileDescriptor
      .internalBuildGeneratedFileFrom(descriptorData,
        new com.google.protobuf.Descriptors.FileDescriptor[] {
        }, assigner);
  }

  // @@protoc_insertion_point(outer_class_scope)
}

4、TestRowCountEndPoint：

package com.imooc.bigdata.hbase.coprocessor.endpoint;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

import org.apache.hadoop.hbase.Cell;
import org.apache.hadoop.hbase.Coprocessor;
import org.apache.hadoop.hbase.CoprocessorEnvironment;
import org.apache.hadoop.hbase.client.Scan;
import org.apache.hadoop.hbase.coprocessor.CoprocessorException;
import org.apache.hadoop.hbase.coprocessor.CoprocessorService;
import org.apache.hadoop.hbase.coprocessor.RegionCoprocessorEnvironment;
import org.apache.hadoop.hbase.regionserver.InternalScanner;

import com.google.protobuf.RpcCallback;
import com.google.protobuf.RpcController;
import com.google.protobuf.Service;
import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountRequest;
import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse;
import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.hbaseEndPointTestService;


public class TestRowCountEndPoint extends
    hbaseEndPointTestService implements Coprocessor,
    CoprocessorService {

  // 单个region的上下文环境信息
  private RegionCoprocessorEnvironment envi;

  // rpc服务，返回本身即可，因为此类实例就是一个服务实现
  @Override
  public Service getService() {
    return this;
  }

  // 协处理器是运行于region中的，每一个region都会加载协处理器
  // 这个方法会在regionserver打开region时候执行（还没有真正打开）
  @Override
  public void start(CoprocessorEnvironment env) throws IOException {
    // 需要检查当前环境是否在region上
    if (env instanceof RegionCoprocessorEnvironment) {
      this.envi = (RegionCoprocessorEnvironment) env;

    } else {
      throw new CoprocessorException("Must be loaded on a table region!");
    }

  }

  // 这个方法会在regionserver关闭region时候执行（还没有真正关闭）
  @Override
  public void stop(CoprocessorEnvironment env) throws IOException {
    // nothing to do

  }

  // 服务端（每一个region上）的接口实现方法
  // 第一个参数是固定的，其余的request参数和response参数是proto接口文件中指明的。
  @Override
  public void getRowCount(RpcController controller,
      getRowCountRequest request,
      RpcCallback<getRowCountResponse> done) {
    // 单个region上的计算结果值
    int result = 0;

    // 定义返回response
    getRowCountResponse.Builder responseBuilder = getRowCountResponse.newBuilder();
    // 进行行数统计
    InternalScanner scanner = null;
    try {
      Scan scan = new Scan();
      scanner = this.envi.getRegion().getScanner(scan);
      List<Cell> results = new ArrayList<Cell>();
      boolean hasMore = false;

      do {
        hasMore = scanner.next(results);
        result++;
      } while (hasMore);
    } catch (IOException ioe) {
      ioe.printStackTrace();
    } finally {
      if (scanner != null) {
        try {
          scanner.close();
        } catch (IOException ignored) {
          // nothing to do
        }
      }
    }

    responseBuilder.setRowCount(result);
    done.run(responseBuilder.build());
    return;

  }
}

5、RowCountTest.proto：

option java_package = "com.imooc.bigdata.hbase.coprocessor.endpoint";

option java_outer_classname = "GetRowCount";
option java_generic_services = true;
option optimize_for = SPEED;

message getRowCountRequest{

}

message getRowCountResponse {
  optional int64 rowCount = 1;
}


service hbaseEndPointTestService {
  rpc getRowCount(getRowCountRequest)
  returns(getRowCountResponse);
}

6、TestRowCount：

import java.io.IOException;
import java.util.Collection;
import java.util.Map;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.client.Connection;
import org.apache.hadoop.hbase.client.ConnectionFactory;
import org.apache.hadoop.hbase.client.Table;
import org.apache.hadoop.hbase.client.coprocessor.Batch;
import org.apache.hadoop.hbase.ipc.BlockingRpcCallback;
import org.apache.hadoop.hbase.ipc.ServerRpcController;

import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount;
import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.getRowCountResponse;
import com.imooc.bigdata.hbase.coprocessor.endpoint.GetRowCount.hbaseEndPointTestService;

public class TestRowCount {

  public static void main(String[] args) throws Throwable {
    Configuration config = new Configuration();
    config.set("hbase.zookeeper.quorum", "127.0.0.1:2181");

    Table table = null;
    Connection connection = null;

    // 返回值接收，Map<region名称,计算结果>
    Map<byte[], getRowCountResponse> results = null;

    try {
      connection = ConnectionFactory.createConnection(config);
      table = connection.getTable(TableName.valueOf("test_table"));

      // 调用 RPC，并对返回值进行处理。
      Batch.Call<hbaseEndPointTestService, getRowCountResponse> callable = new Batch.Call<hbaseEndPointTestService, getRowCountResponse>() {
        ServerRpcController controller = new ServerRpcController();

        // 定义返回
        BlockingRpcCallback<getRowCountResponse> rpcCallback = new BlockingRpcCallback<getRowCountResponse>();

        // 下面重载 call 方法，API会连接到region后会运行call方法来执行服务的请求
        @Override
        public getRowCountResponse call(hbaseEndPointTestService instance)
            throws IOException {
          // Server 端会进行慢速的遍历 region 的方法进行统计
          GetRowCount.getRowCountRequest.Builder request = GetRowCount.getRowCountRequest
              .newBuilder();
          // RPC 接口方法调用
          instance.getRowCount(controller, request.build(),
              rpcCallback);
          // 直接返回结果，即该 Region 的 计算结果
          return rpcCallback.get();

        }
      };

      /**
       * 通过Table.coprocessorService(Class, byte[], byte[],Batch.Call)
       * 请求多region服务
       *
       * byte[]参数指明了startRowKey和endRowKey，当都为null的时候即进行全表的全region的数据计算。
       * 　　　*　Batch.Call：需要自定义，API会根据如上参数信息并行的连接各个region，
       */
      results = table.coprocessorService(hbaseEndPointTestService.class,
          null, null,
          callable);

      // 合并多个Region的结果
      Collection<getRowCountResponse> resultsc = results.values();
      long result = 0L;
      for (getRowCountResponse r : resultsc) {
        result += r.getRowCount();
      }
      System.out.println(String.format("row count=%s", result));

    } catch (Exception e) {
      e.printStackTrace();
    } finally {
      if (null != table) {
        try {
          table.close();
        } catch (IOException ioe) {
          ioe.printStackTrace();
        }
      }

      if (null != connection) {
        try {
          connection.close();
        } catch (IOException ioe) {
          ioe.printStackTrace();
        }
      }
    }

  }
}

7、加载协处理器

配置文件加载:即通过hbase-site.xml文件配置加载，一般这样的协处理器是系统级别的

属性 说明
hbase.coprocessor.region.classes 配置RegionObservers和Endpoints
hbase.coprocessor.wal.classes 配置WALObservers
hbase.coprocessor.master.classes 配置MasterObservers

shell加载:可以通过alter命令来对表进行schema修改来加载协处理器

<property>

   <name>hbase.coprocessor.region.classes</name>

   <value>org.myname.hbase.coprocessor.endpoint.SumEndPoint</value>

</property>

通过API代码加载:即通过API的方式来加载协处理器

alter 'CoprocessorTestTable',
'coprocessor'=>'hdfs://localhost:9000/path/coprocessor.jarlcom.imooc.hbase.coprocessor.TestRegionObserver | 1001|'

8、编译hbase-observer-test，生成hbase-observer-test-1.0-SNAPSHOT.jar，如图：

将hbase-observer-test-1.0-SNAPSHOT.jar上传到/usr/local/hadoop上

在/usr/local/hadoop/hadoop-2.7.3/bin 上使用

./hdfs dfs -mkdir /coprocessor/

./hdfs dfs -copyFromLocal /usr/local/hadoop/hbase-observer-test-1.0-SNAPSHOT.jar /coprocessor/

cd /usr/local/hadoop/hbase-1.2.4/bin 进入该目录

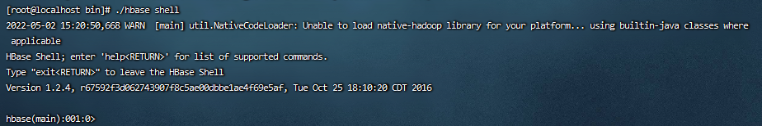

./hbase shell

create 'CoprocessorTest','cf'

disable 'CoprocessorTest'  先将表禁用掉，再将协处理器加载到该表中

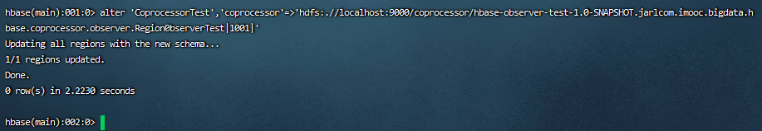

执行加载协处理器

alter 'CoprocessorTest','coprocessor'=>'hdfs:.//localhost:9000/coprocessor/hbase-observer-test-1.0-SNAPSHOT.jar|com.imooc.bigdata.hbase.coprocessor.observer.RegionObserverTest|1001|'
如图：

enable 'CoprocessorTest' 启用这张表

如图：

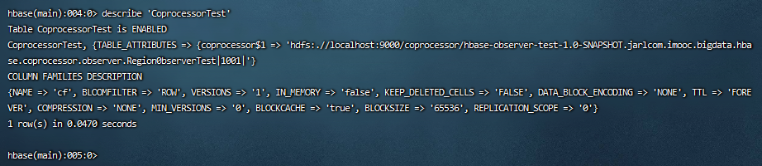

执行 describe 'CoprocessorTest'

在CoprocessorTest表中添加一条数据

执行4次

 put 'CoprocessorTest','rowkey1','cf:countCol','10'

我们在获取这张表中的字段的数据，如果我们的协处理器没有问题，那么结果的值就应该是40

get 'CoprocessorTest','rowkey1','cf:countCol'

如图：

9、HBase卸载/更新协处理器

重复加载的第二个Coprocessor实例不会发挥作用

要完成卸载/更新就需要重启JVM，也就是重启RegionServer

你好：我的2025

上一篇：centos7配置时间同步

下一篇：Hadoop学习之Phoenix简介以及安装

最近更新

最近更新

最近更新

Copyright 2025 Inc. AllRights Reserved. Design by 我爱海鲸 湘ICP备19022671号-1
